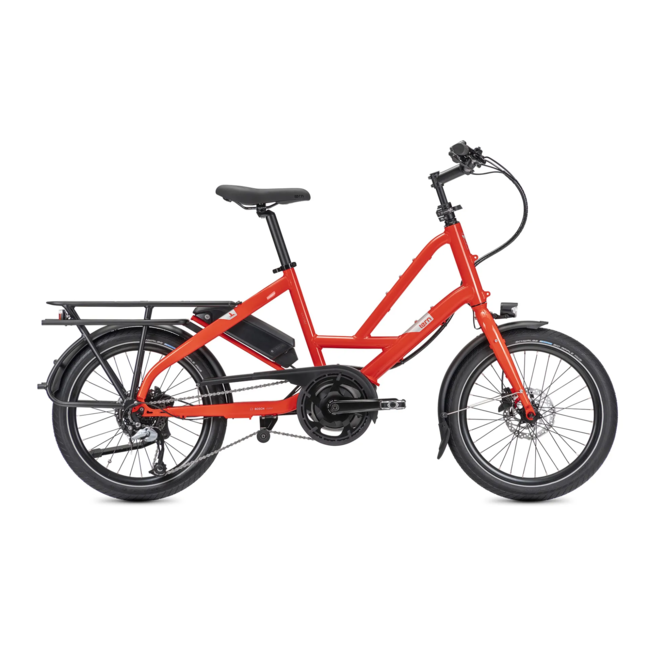

Tern Quick Haul D8 tabasco vélo cargo électrique

Information

Tern Quick Haul electric assist cargo bike highlights

• Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
• Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost
• Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
  Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
• Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
• Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

What Makes it a D8?

• Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
• 1x8-speed Shimano Altus groupset with trigger shifter

GENERAL INFO
SPEEDS: 1 x 8
WEIGHT: 22.8 kg (50.3 lb)
GEAR INCHES: 31" - 95" (2.45 - 7.57 m)
FRAME SIZES: One size
DISTANCE
SEATPOST TO HANDLEBAR: 60 - 64 cm (23.6 - 25.2 in)
SADDLE TO PEDAL: 68 - 110 cm (26.8 - 43.3 in)
SUGGESTED RIDER HEIGHT: 160 - 195 cm (63 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: 150 kg (330.7 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)

FRAME

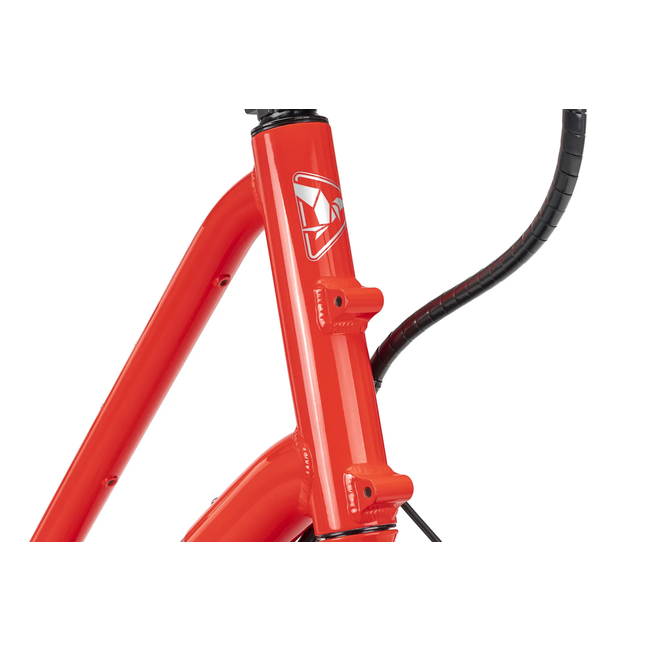

FRAME: Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
FORK: Cargo, steel
EFBE approved: 150 kg

COCKPIT

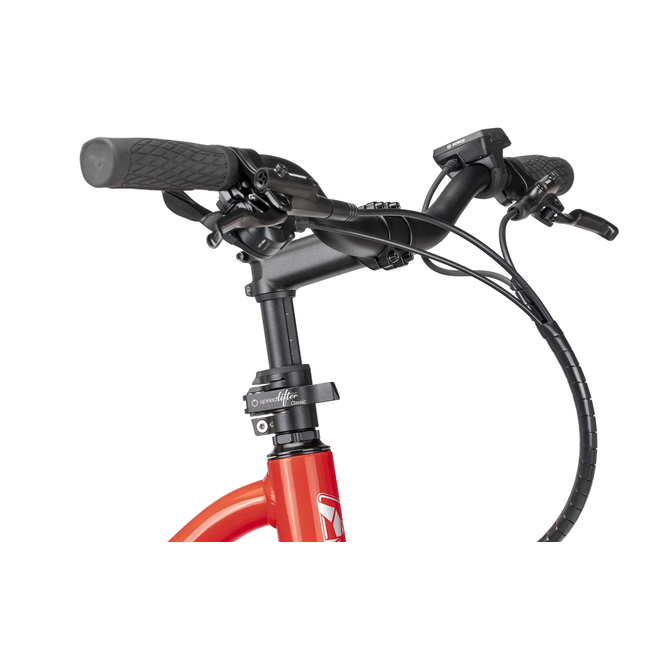

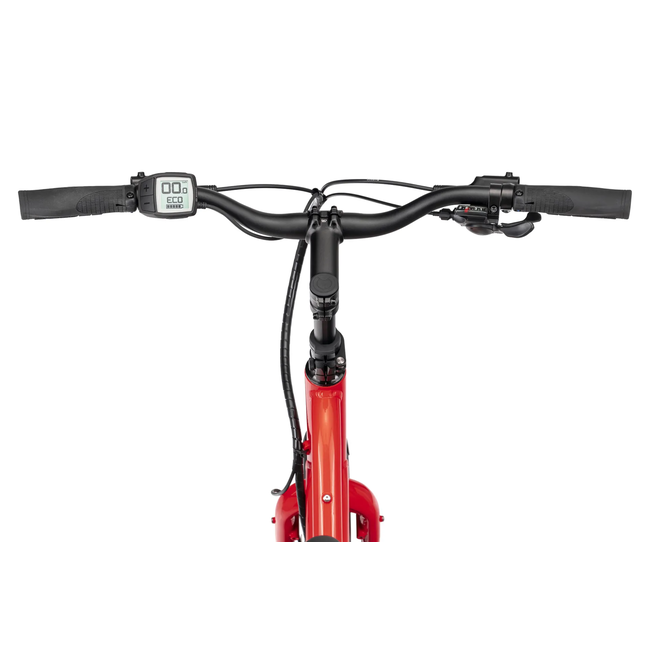

STEM: Speedlifter, 150 mm extension, 3D Forged stem, 31.8
HEADSET: TH, cartridge bearings
HANDLEBAR: Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE: Velo ergonomic, lock-on
SADDLE: Velo Comfort
SEATPOST: 31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP: Tern Collar

BRAKES
FRONT BRAKE: Shimano, hydraulic disc
REAR BRAKE: Shimano, hydraulic disc
BRAKE LEVERS: Shimano, hydraulic disc
BRAKE CABLE & HOUSING: Shimano, hydraulic disc

WHEELS
FRONT HUB: Shimano disc
REAR HUB: Shimano disc
SPOKES AND NIPPLES: Stainless steel
RIMS: Kinetix Comp, for disc

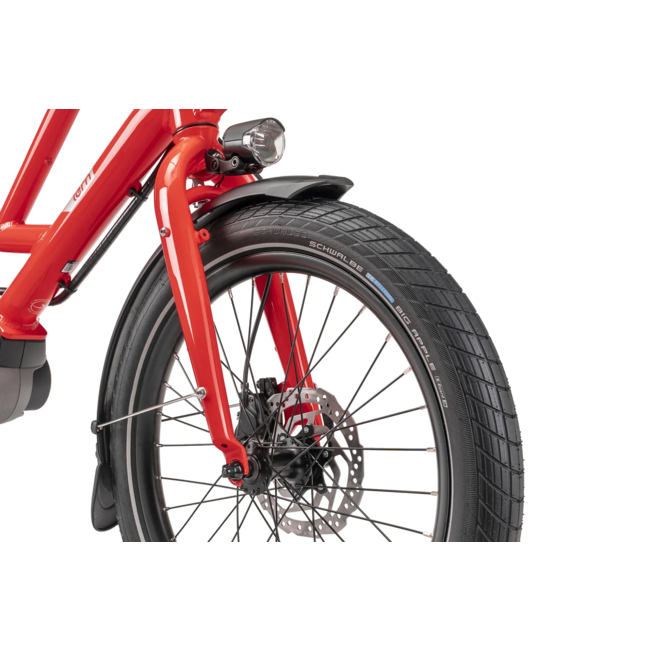

TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION
SHIFTER(S): Shimano Altus, 1 x 8 spd, trigger
REAR DERAILLEUR: Shimano Altus Shadow
CRANKSET: Tern custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL: Shimano 11-34T, 8 spd
BOTTOM BRACKET: Motor integrated
CHAIN: KMC for eBike, 8 spd
PEDALS: Urban with non-slip surface
SHIFTER CABLE & HOUSING: SP

E-SYSTEM

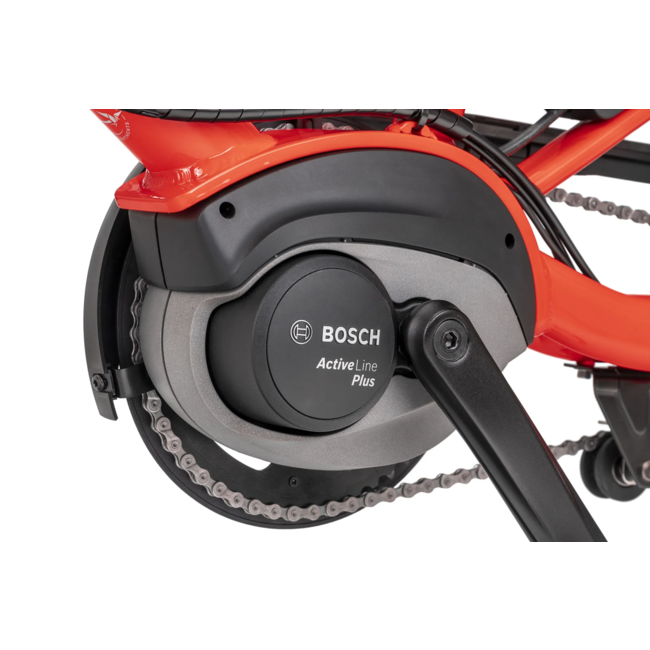

MOTOR: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

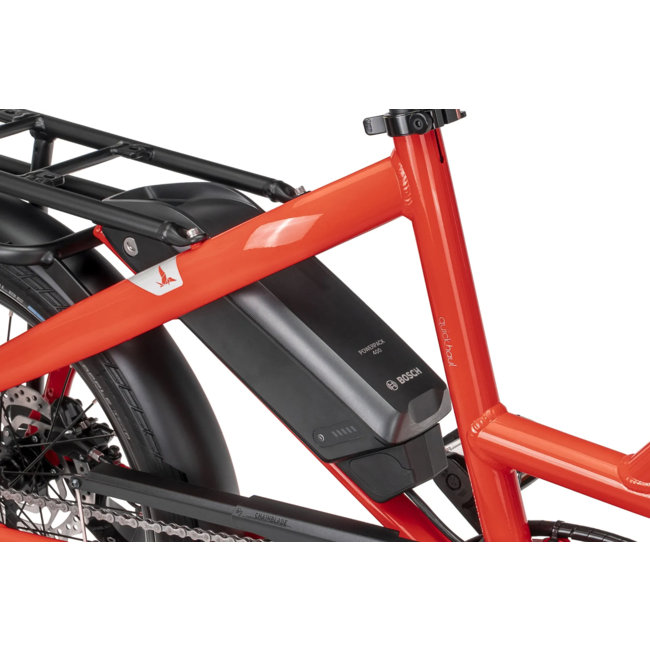

BATTERY: Bosch PowerPack 400

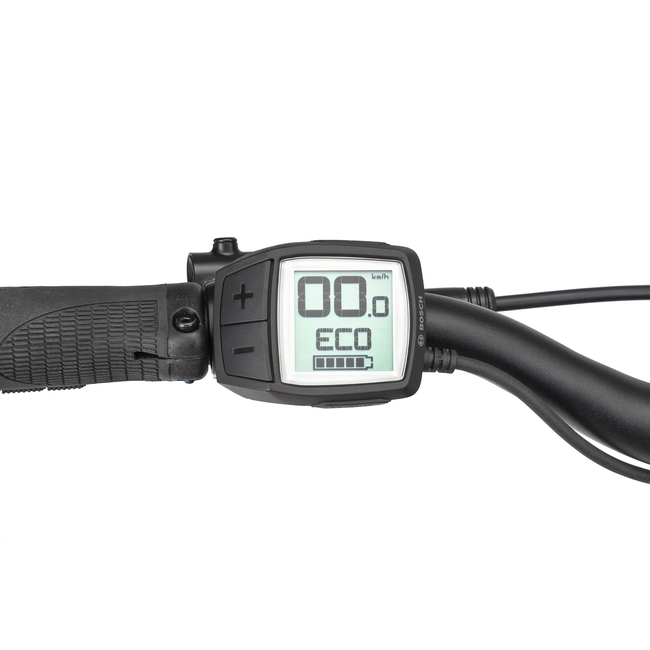

DISPLAY: Bosch Purion
RANGE: 400 Wh: 54 - 105 km (33.6 - 65.2 mi)
CHARGER: Compact Charger, 100-240V, 2A

EXTRAS
BELL: Aluminum
CHAINGUARD: SKS Chainblade
KICKSTAND: Pletscher design, rear mount
LUGGAGE SOCKET: Combo Mount

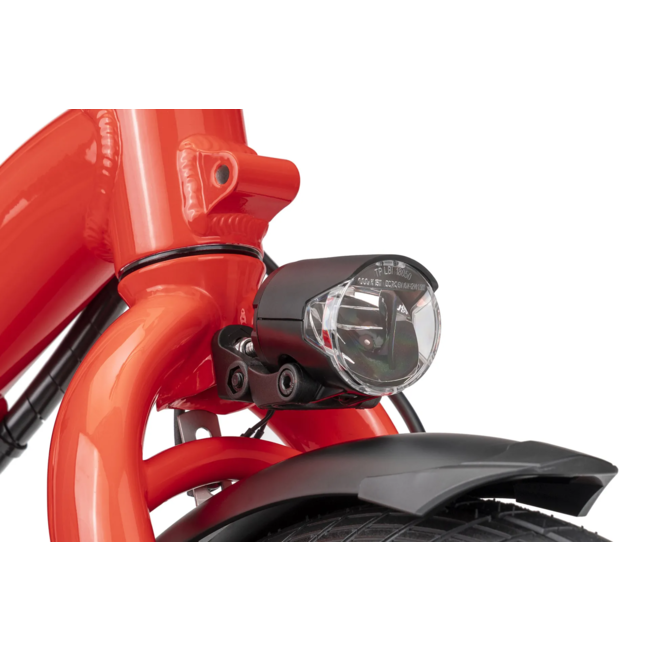

FRONT LIGHT: Herrmans, 120 lumens
REAR LIGHT: Herrmans
FENDERS: Chromeplastic, stainless hardware

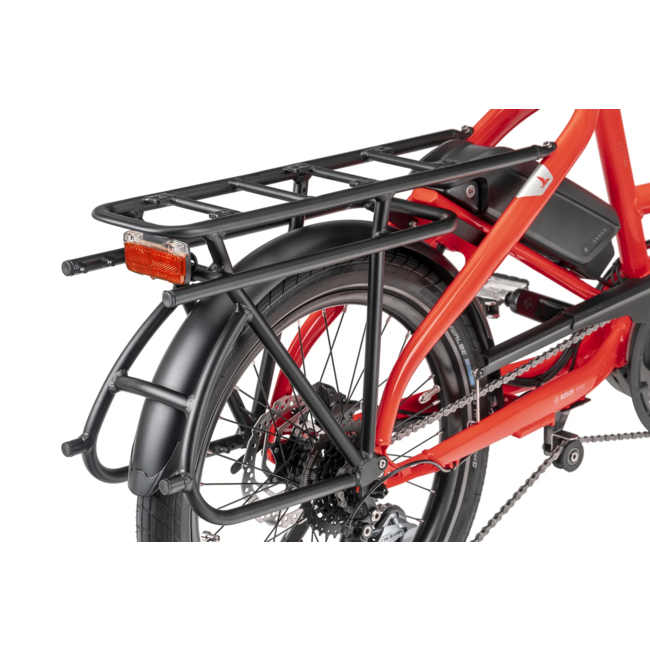

RACK(S): Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
