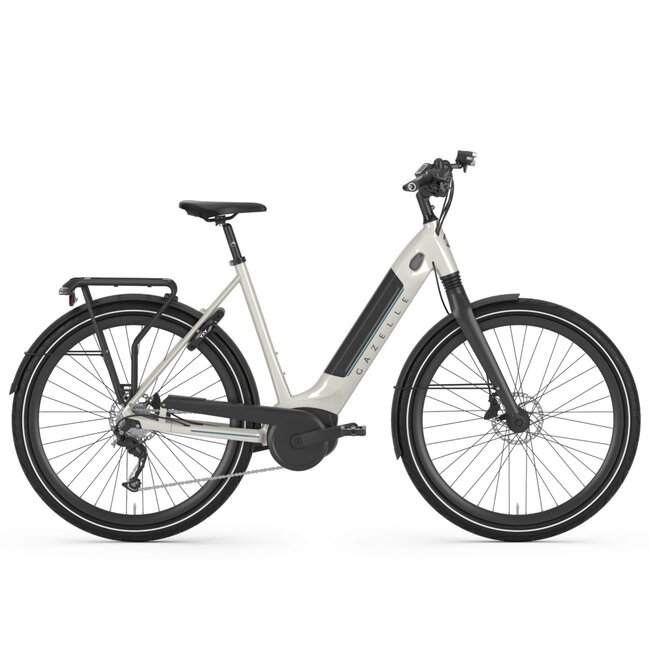

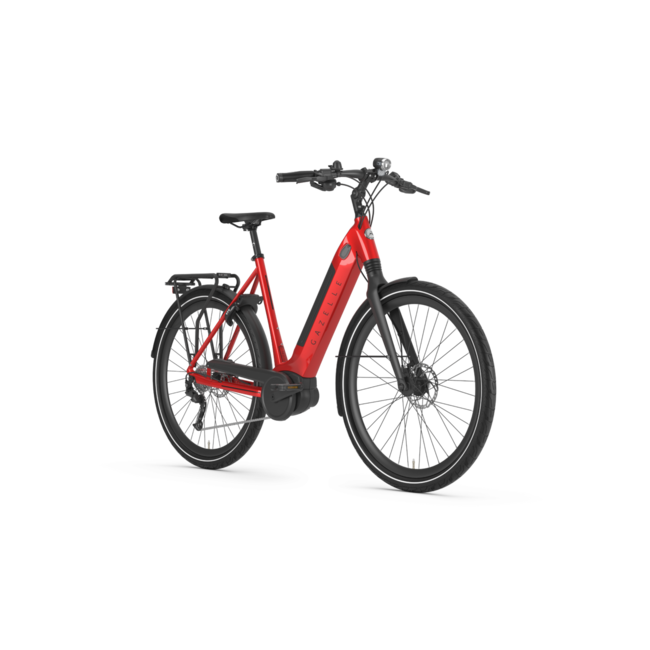

Gazelle ULTIMATE T10 low step E-bike

Information

DISCOVER THE ELECTRIC BIKE GAZELLE ULTIMATE T10 HMB

The Gazelle Ultimate T10 is a top of the range trekking e-bike, refined down to the last detail. The first-class groupset including Shimano Deore, Bosch Performance line and ergonomically-shaped handlebar grips enable sporty performance to be achieved. The Ultimate T10 HMB is delightfully stable on the road thanks to the battery and motor integration plus the rigidity of the frame. The dynamic design, high level of comfort and excellent handling make this bike the ideal companion for long recreational trips.



• Powerful assistance thanks to a Bosch Performance Line motor  with 65 Nm of torque (20 mph) and 500 Wh integrated battery
• High comfort level on poor road surfaces thanks to use of outstanding integrated 30mm suspension front fork
• Active posture combined with powerful performance mean that no trip is too far
• Design, integration and comfort: the Ultimate T10 HMB has it all



Maximum range (one battery)	115km
Watt-hours	500 Wh
Capacity	13,4 Ah
Eco range	115km
Tour range	64 km
Sport range	48 km
Turbo range	40 km

NEED MORE RANGE?

This bike can support TWO BATTERIES with a battery adapter to double its range on all sizes except the 46cm. Ask for more info : 1-877-683-3338



• FEATURES
  Size: 46, 53, 57
  Engine model: Bosch Performance Line 3.0 (65 Nm)
  Brake system short description: hydraulic brakes, 4 piston
  Gears: 10
  Fork suspension type: internal to headset

  GENERAL
  Name: Gazelle Ultimate
  Wheelsize: 28
  Frame description: Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
  Frame material: aluminium
  Weight in Lb.: 50.71
  Tires: Schwalbe Energizer Plus
  Fork material: aluminium
  Fork suspension type: internal to headset

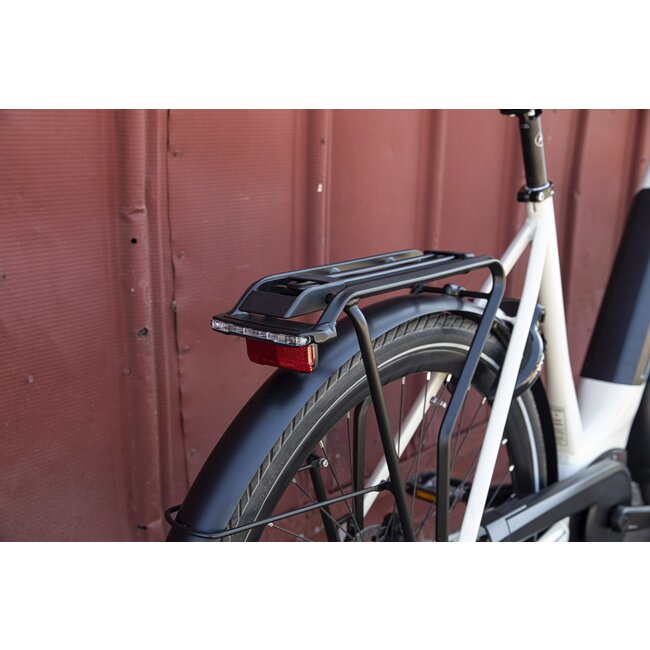

  Rear carrier description: Aluminum
  Handlebar description: Aluminium, slightly curved model
  Saddle: Selle Royal Loire
  Chaincase description: Aluminum
  Tire color: black
  Rims: Ryde Dutch
  Sitting position: Active
  Travel Fork: 40 mm
  Adjustable stem: Yes

  Transmission & Brakes
  Gear type: derailleur
  Gears: 10
  Brake system short description: hydraulic brakes, 4 piston
  Brake Front: disc brake with hydraulic control
  Brake Rear: Disc brake with hydraulic control
  Rear derailleur: Shimano Deore
  Front chainwheel: 38

  E-BIKE
  E-bike system: Bosch
  Motor location: mid
  Battery type: Li-ion
  Motor assistance level: 32km/h

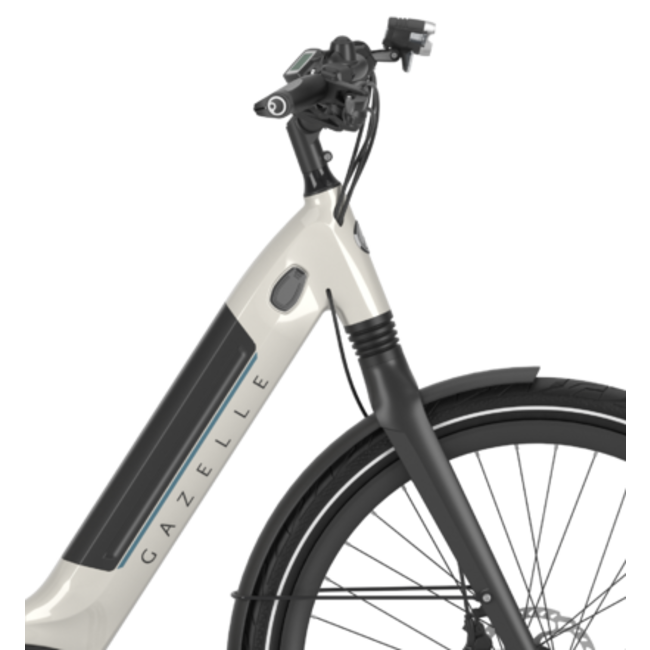

  Battery position: integrated into frame
  Battery replaceable: Yes
  Second battery: yes, available for size 53 & 57, sold separately
  Amount of support levels: 4
  Walk assist: Yes
  Engine model: Bosch Performance Line 3.0 (65 Nm)
  Motor capacity: 65Nm
  Battery system: Bosch
  Display Model: Bosch Purion LCD
  Ebike sensors: rotation sensor, speed sensor, pedal force sensor
  Display location: side display

  INCLUDED ACCESSOIRIES
  Lock description: Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
  Lock safety level: ART ** certified
  Lock Type: AXA Defender
  Kickstand: type drop-down rear stand

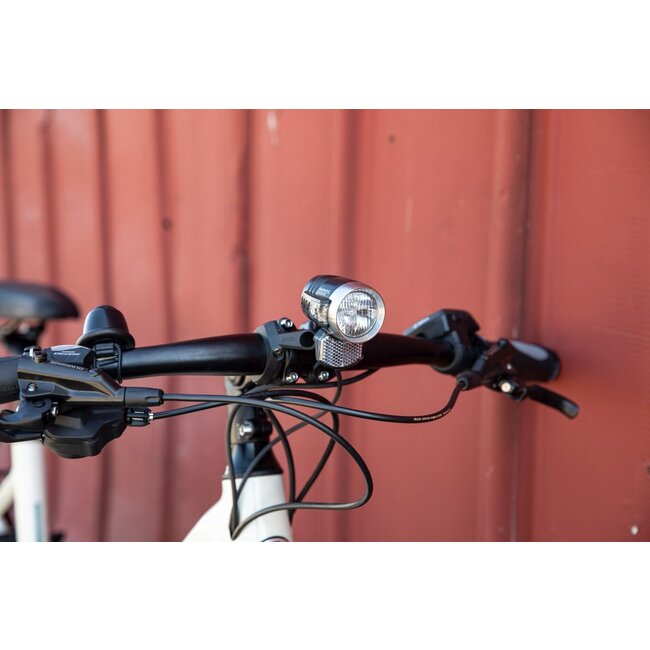

  Front light type: Axa Blue Line 50
  Light powering: Battery
