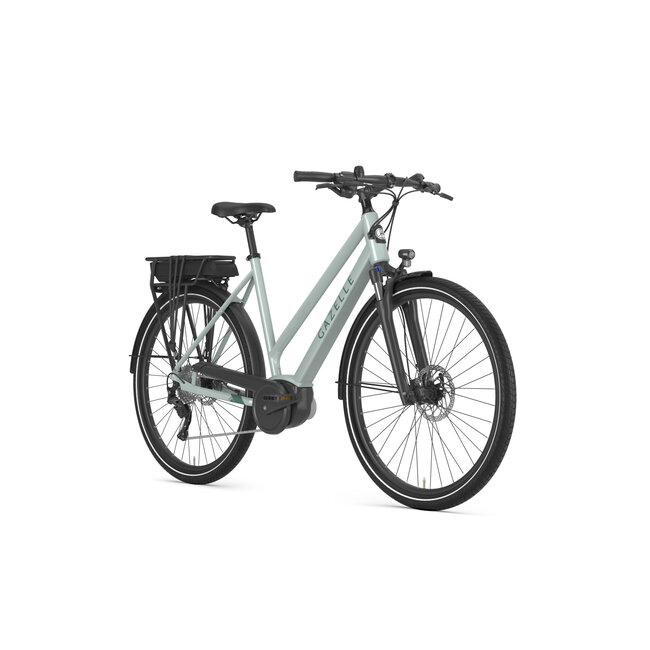

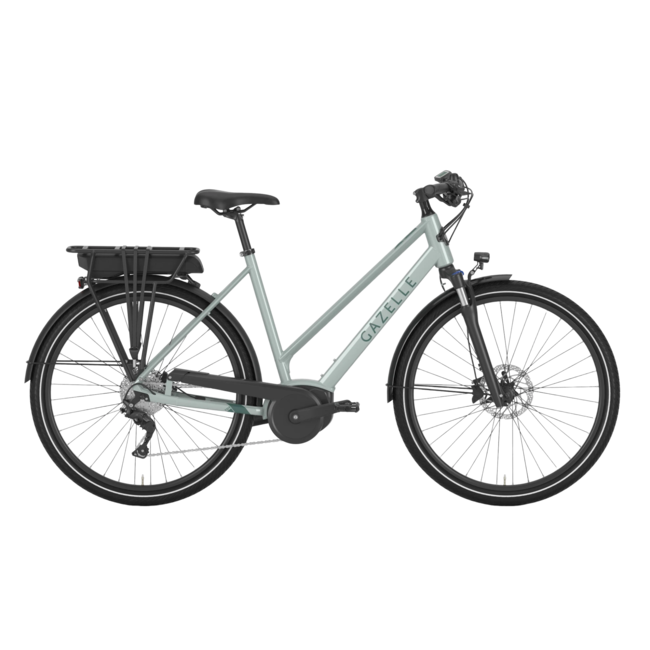

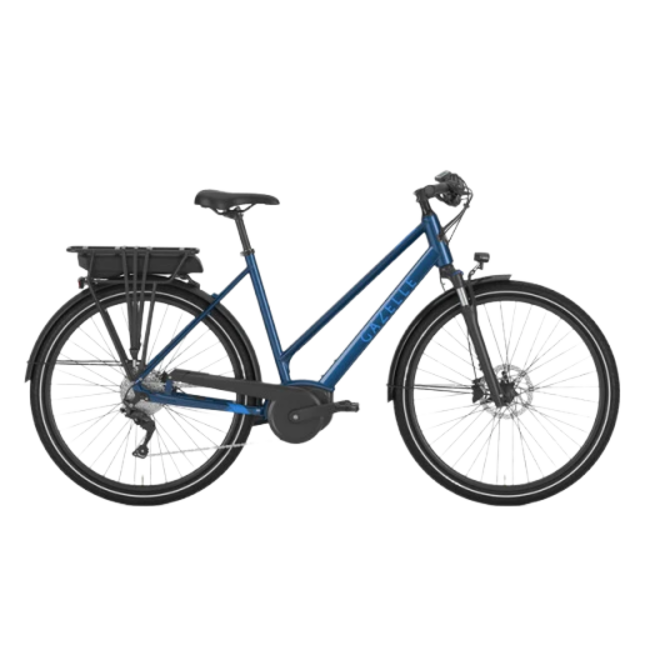

Gazelle Medeo T9 CITY HMB low step E-bike
Information
The Gazelle Medeo T9 City is our active electric bike that takes you everywhere. Built with the reliable and quiet Bosch Active Line motor and 9-speed external derailleur, every hill will feel as flat as Holland.
Powerful front and rear lighting plus a sturdy rear rack will inspire riders to swap their car for this bike for both day and nighttime trips. Enjoy every mile of the ride thanks to a roomy low-step frame, comfortable geometry, and wide tires. The Medeo City is a great value and perfect introduction to e-bike life.
- Smooth assistance thanks to a Bosch Active Line motor with 40 Nm of torque (20mph) and 400Wh rack battery
- Premium Shimano disc brakes provide smooth and responsive stopping power
- Safety first with powerful lights and puncture resistant tires
- Active geometry combined with a low-step frame creates a fun and lively experience perfectly suited to urban errands and adventures.
System
Display: Bosch Purion LCD
Display detachable: No
Sensors: rotation sensor; speed sensor; pedal force sensor
Engine: Bosch Active Line (40Nm), 36V
Torque: 40Nm
Assist levels: Eco, Tour, Sport, Turbo (250% max assistance)
Battery: 400 wh, integrated into carrier
Charger: 2 Ah
Range: 90 km in optimal condition
Frame/front fork
Frame: Stable lightweight aluminium sloping frame with
70,5° headset angle and 73° saddle tube angle for a
sporty posture and precise handling. Cables
beautifully integrated into the frame.
Sitting position: Active
Integrated cables: Yes
Fork: Suntour NEX E25 HLO 50mm
Chain guard: Plastic
Frame: Stable lightweight aluminium sloping frame with
70,5° headset angle and 73° saddle tube angle for a
sporty posture and precise handling. Cables
beautifully integrated into the frame.
Sitting position: Active
Integrated cables: Yes
Fork: Suntour NEX E25 HLO 50mm
Chain guard: Plastic
Rear carrier: Aluminum MIK system carrier
Bike weight total: 23.9 kg
Bike weight total: 23.9 kg
Wheels/tires
Tires: Schwalbe Big Apple, 28"X2" (50-622)
Tires puncture resistant: Yes
Rims: Mach1 ER-10, Double-walled aluminium for extra
strong and efficient cycling performance
Spokes: Stainless steel, extra strong
Fender: Aluminum
Steering
Handlebar: Aluminium, slightly curved model
Stem: Steplessly adjustable
Steer grip: Plastic wear-resistant handlebar grips for a
firm grasp
Grip type: Herrmans DD36
Brake lever: Shimano BR-MT200
Bell: Gazelle Compact bell
Transmission/brake
Gear system: Shimano Alivio, 9-speed
Front hub: Shimano
Derailleur rear: Shimano Alivio
Shifter: Shimano Acera
Brake system back: Disc brake with hydraulic control;
Shimano BL-MT200, 2 piston 160 mm
Brake system front: disc brake with hydraulic control;
Shimano BR-MT200, 2 piston 180 mm
Front chainwheel: 38
Rear chainwheel: 11-36
Drivetrain: Chain
Chain: KMC extra strong, special for e-bike
Saddle
Seatpost: Fixed
Saddle: DDK, sportive
Lighting
Lights front: Axa Compactline 35, LED headlamp,
on/off switching via display
Front light lux: 35
Front light powersource: Battery
Light back: Axa Blueline, LED battery supply, on/off
switching via display
Rear light powersource: Battery
Other
Kickstand: drop-down rear stand, Ursus Mooi
Specifications
Bike weight
22.4 kg
Frame material
Aluminium
Maximum range
90 km
Motor
mid-drive BOSCH ACTIVE LINE
Drivetrain
Chain
Torque
40Nm
Sensors
Speed, pedal force, rotation
Asisst levels
4
Walk assist
Yes
Gears
9 speed, Shimano Alivio
Battery
Bosch Powerpack 400Wh
Capacity
11 Ah
Second battery
no
Brakes
Hydraulic
Suspensions
Fork
Front light
included, powered by battery
rear light
included, powered by battery
Front mudgard
Included
Rear mudgard
Included
Front rack
Not included
Rear rack
Included, max 30 lbs
Max load (rider + cargo)
280 lbs
Bike bell
Not included
Anti theft
no
