ALX006 48V 14Ah Battery – 672Wh – Samsung 35E Cells

Information

ALX006 48V 14Ah Battery – 672Wh

The ALX006 48V 14Ah is a lithium-ion replacement battery designed for electric bikes using the same battery housing and connection system.

With 14Ah capacity and 672Wh of nominal energy, it provides a substantial energy reserve for everyday commuting and longer rides.

The battery is built with 52 Samsung 35E cells in a 13S4P configuration and features an integrated 20A BMS for battery management and protection.

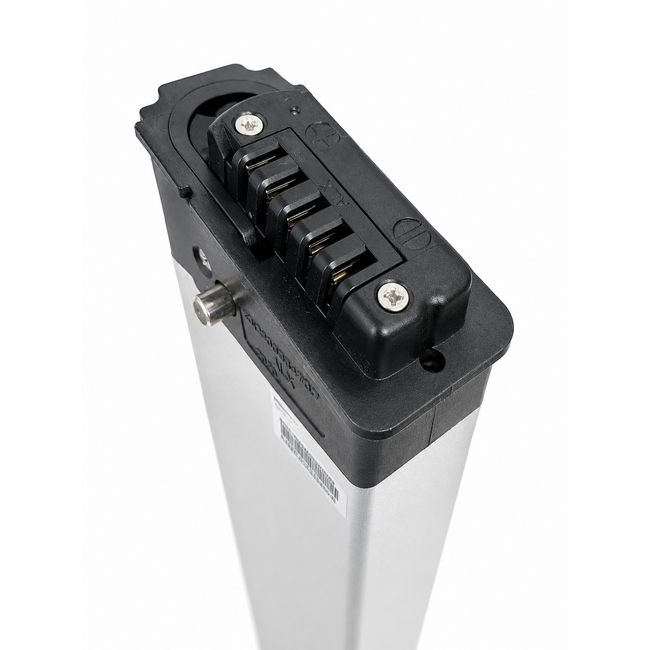

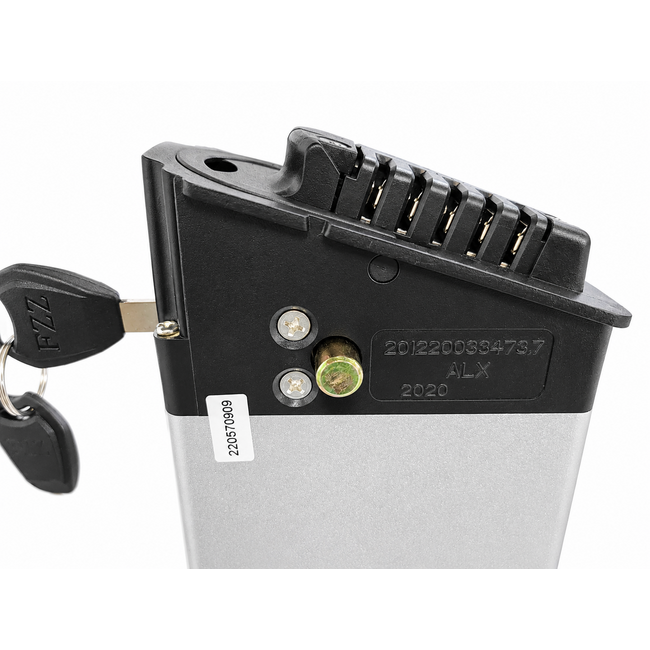

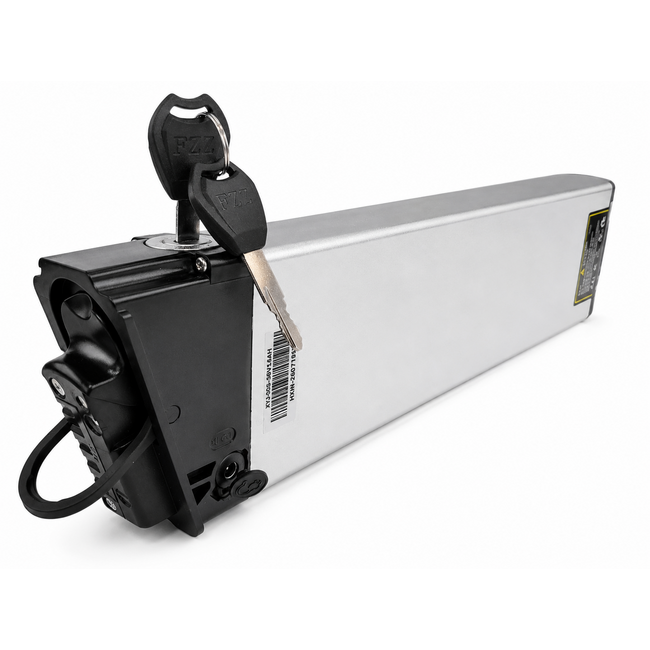

Its rigid housing includes a key locking system and a multi-pin connector for connection to the electric bike.

Each battery is tested before shipping and backed by a 3-year warranty.

Before ordering, compare the dimensions, battery housing and especially the connector with your existing battery and the product photos to confirm compatibility.

Why choose this battery?

• Samsung 35E cells
• 672Wh capacity
• Integrated 20A BMS
• Key locking system
• Tested before shipping
• 3-year warranty
• Shipping across Canada

Technical Specifications

• Model: ALX006
• Type: Lithium-ion e-bike battery
• Nominal voltage: 48V
• Capacity: 14Ah
• Nominal energy: 672Wh
• Cells: Samsung 35E
• Configuration: 13S4P
• Cell quantity: 52
• BMS: 20A
• Compatible charger: 54.6V 2A
• Supplier dimensions: 400 × 265 × 445 × 95 mm
• Gross weight: Approx. 5 kg
• Locking system: Key lock
• Connector: Multi-pin

Another option: battery reconditioning

Is your current battery running out of power too quickly? Before replacing it, check out our e-bike battery reconditioning service in Quebec City, featuring Samsung cells and a 3-year warranty.

→ Learn more about battery reconditioning
